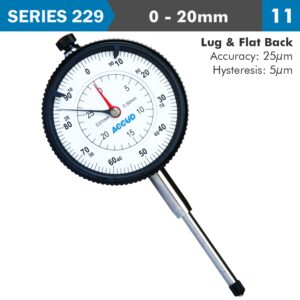

SERIES 229
A dial indicator, also known as a dial gauge, is a precision measurement tool used to measure small linear
distances and variations in distance. It converts the linear movement of its spindle into the rotational
movement of a dial pointer, allowing for highly accurate readings.
Bezel: ⋄56mm
Graduation: 0.01mm with limit hands
Range: 0mm – 20mm
Accuracy: 25µm
Hysteresis: 5µm
Scale: 0 – 100
Back: lug and flat back
Manufacturer Cat No: 229-020-11
Applications
Dial indicators are widely used in various fields such as manufacturing,
machining, and quality control for tasks including:
- Measuring the flatness, roundness, and alignment of parts.
- Checking runout, deflection, and thickness.
- Inspecting the precision of machine tools and fixtures.
- Comparing dimensions to ensure conformity to specifications.
The versatility and precision of dial indicators make them indispensable
tools in any setting where accurate measurement of small distances is crucial.
